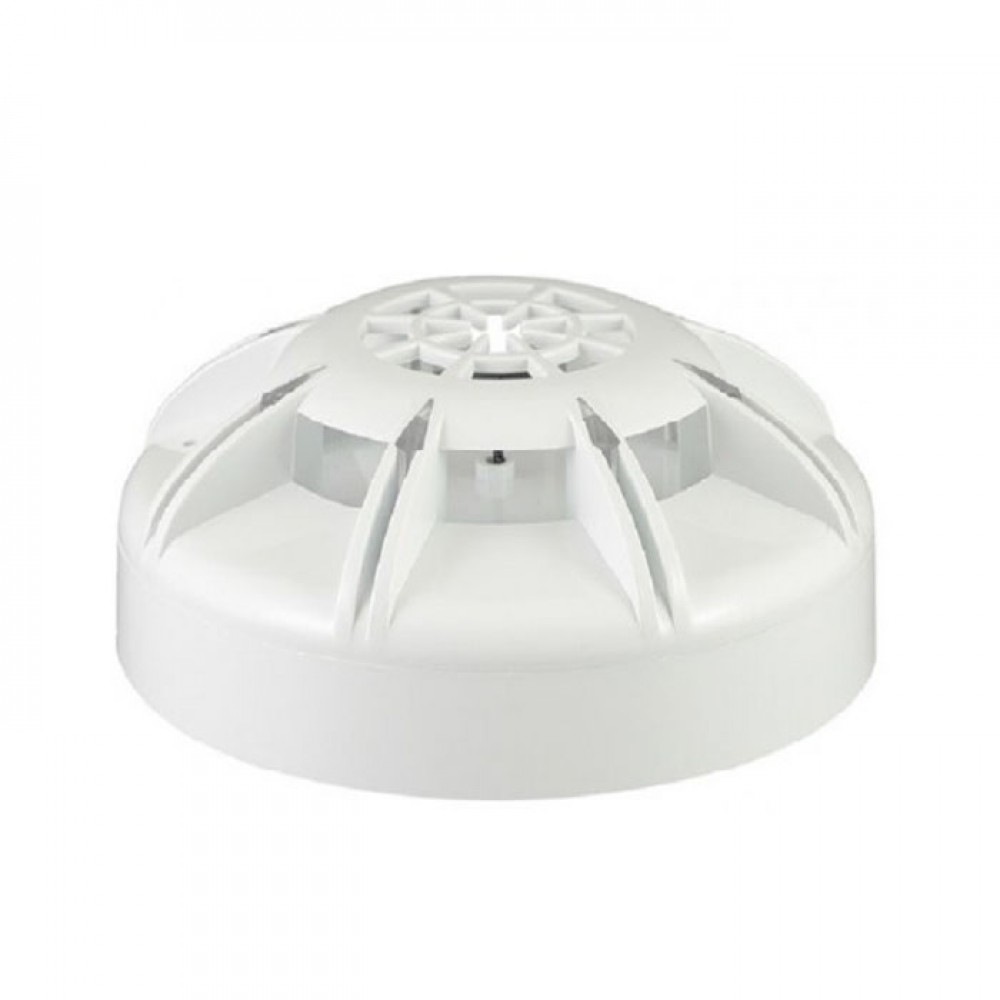

Fyreye MKII Addressable Fixed Heat (CS) Detector
$41.00
Ex Tax: $41.00
Seller: SGELV
OverView
The Fyreye MKII Rate of Rise heat detector(MKII-AHR) uses a thermistor arrangement tosense a quick rise in temperature and also afinal threshold temperature of 57°C. The Fyreyefixed heat detector (MKII-AHF) has a singlethermist...The Fyreye MKII Rate of Rise heat detector
(MKII-AHR) uses a thermistor arrangement to
sense a quick rise in temperature and also a
final threshold temperature of 57°C. The Fyreye
fixed heat detector (MKII-AHF) has a single
thermistor arrangement that gives an alarm at
a temperature of 57°C, where the MKII-AHF/
CS90 gives an alarm above 86°C.
| Fire Alarm | |
| Alarm Condition | Fixed heat trigger @ 90°C |
| Alarm Current @ 24V DC | 5mA |
| Approval | LPCB |
| Coverage | 50m² |
| Design Standard | Fixed Heat Only CS |
| Detector Class | Fixed Heat Only CS |
| IP Rating | IP43 |
| Maximum Humidity | 95% RH non-condensing |
| Minimum Continuous Temperature | 0°C |
| Operating Voltage | 17 to 28V DC |
| Part No. | 80-218 |
| Quiescent Current | 500μA |
| Start-up Time | 10 Seconds |
| Security Camera | |
| Operating Temp | -10 to +80°C |
